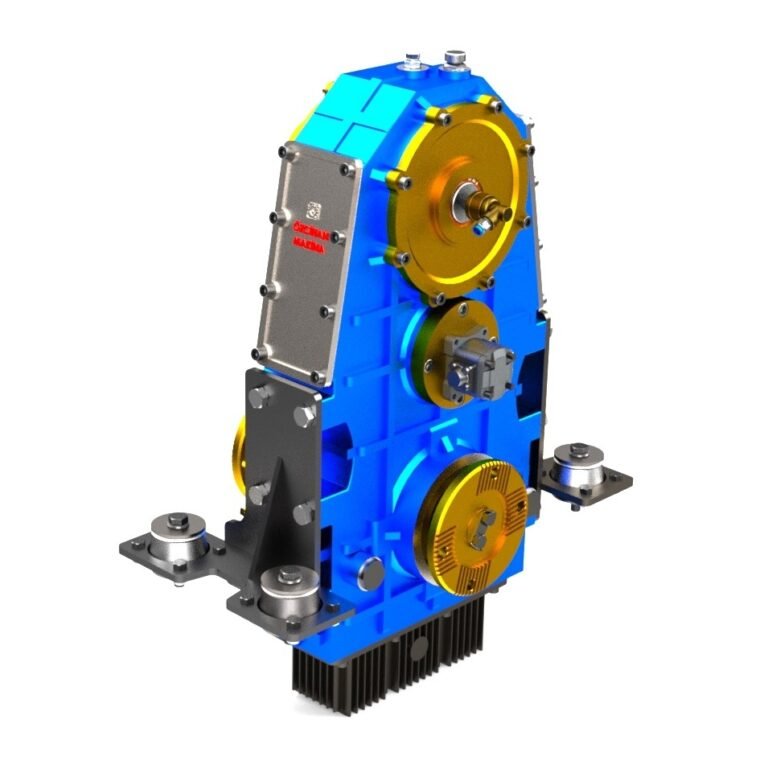

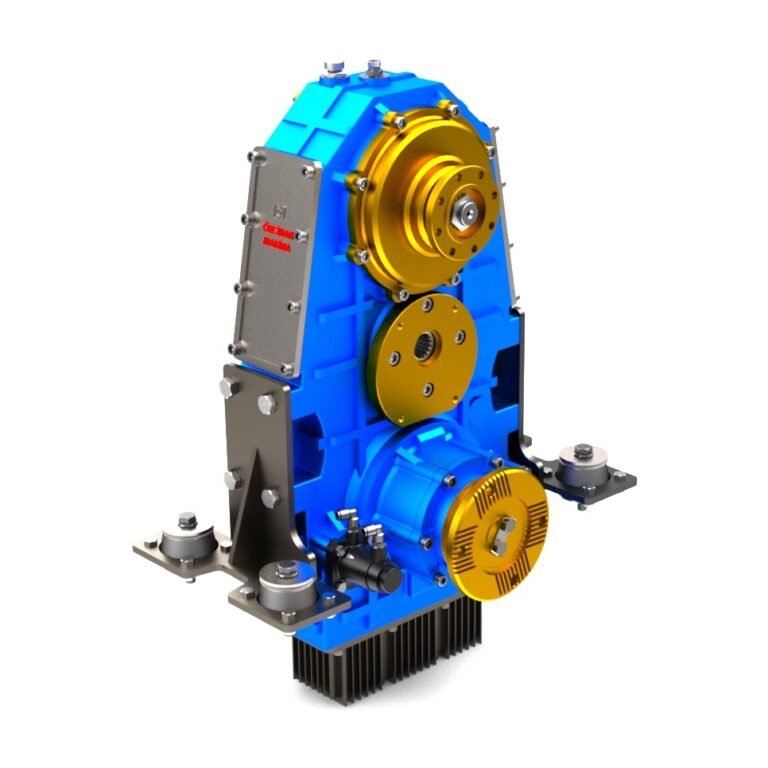

CTM 200

TECHNICIAL SPECIFICATIONS
TRANSMISSION CODE	CTM 200 3500
MAIN SHAFT	TORQUE: 3500 Kgm
GRIP OUTPUTS 1000 RPM	TORQUE: 160 Kgm (1568 Nm) – POWER: 167 Kw RATIO: 1/1.28
HYDRAULIC PUMP OUTPUT	TORQUE: 400Nm – POWER: 35Kw – RATIO: 1/1.28
MAXIMUM SPEED	2800-3300RPM
WEIGHT	185 Kg
