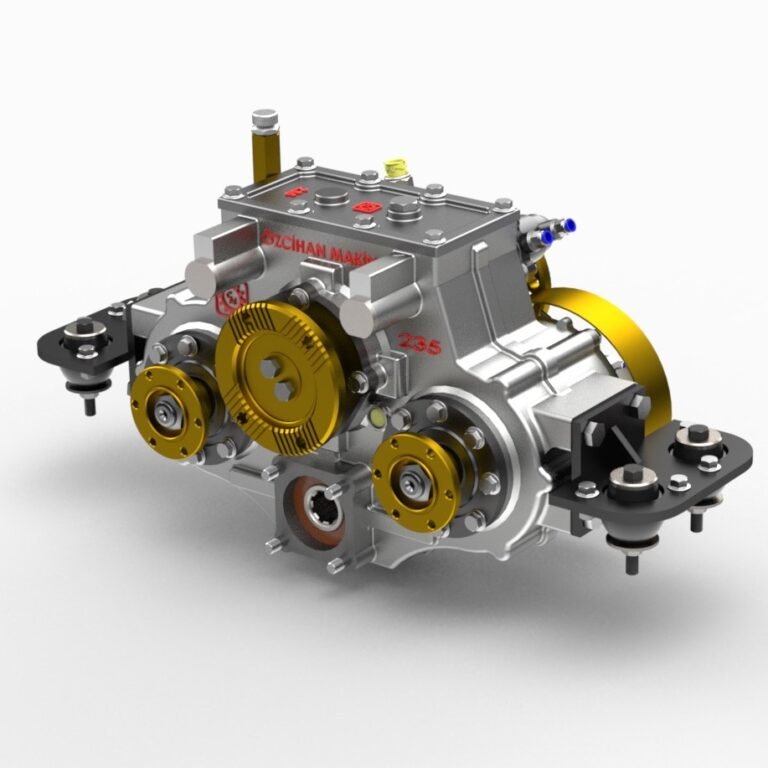

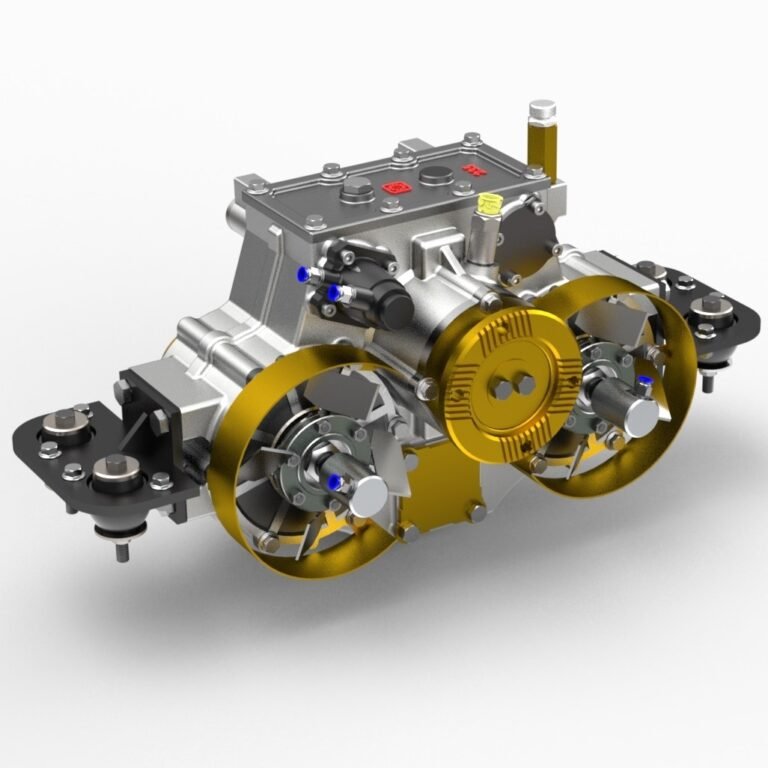

CTM 235

TECHNICIAL SPECIFICATIONS
TRANSMISSION CODE	CTM 235 2000
MAIN SHAFT	TORQUE: 2000 Kgm
GRIP OUTPUTS 1000 RPM	TORQUE: 90 Kgm( 882 Nm ) – POWER: 95 KW – RATIO: 1/1,43
HYDRAULIC PUMP OUTPUT	TORQUE: 400Nm – POWER: 35Kw – RATIO: 1/1.65
MAXIMUM SPEED	2800-3300RPM
WEIGHT	184 Kg
