CTM330271
| TECHNICIAL SPECIFICATIONS | |
|---|---|
| PUMP CODE | CTM330271 |
| FLOW | 27 cm³/rev |
| OPERATING PRESSURE | 270 |
| MAX. PRESSURE | 470 |
| MIN. (rpm) | 400 |
| MAX. (rpm) | 1500 |
| A (mm) | 157 |
| OIL INLET | R 1“ |
| OIL OUTPUT | R 3/4“ |
| WEIGHT | 10 |
BROCHURE: Brochure

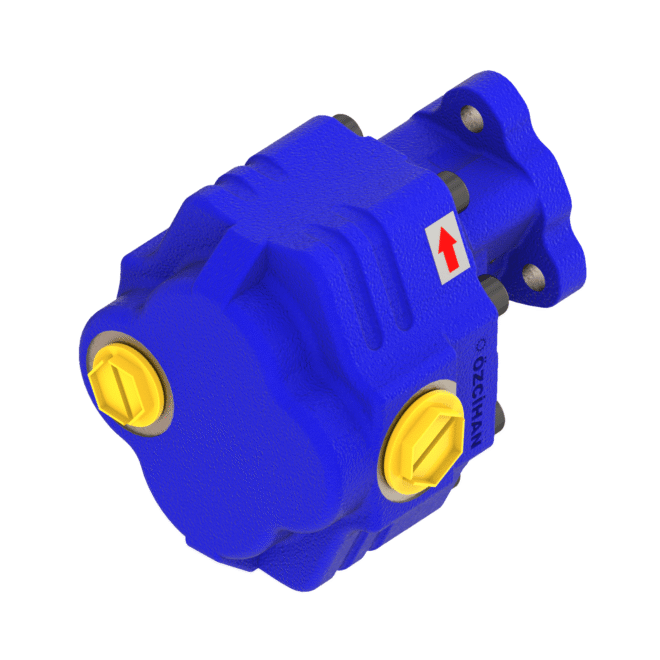

30 Series Uni Gear Pump
| TECHNICIAL SPECIFICATIONS | |
|---|---|
| PUMP CODE | CTM330271 |
| FLOW | 27 cm³/rev |
| OPERATING PRESSURE | 270 |
| MAX. PRESSURE | 470 |
| MIN. (rpm) | 400 |
| MAX. (rpm) | 1500 |
| A (mm) | 157 |
| OIL INLET | R 1“ |
| OIL OUTPUT | R 3/4“ |
| WEIGHT | 10 |
BROCHURE: Brochure
